Commax 1 Door -to- 2 Room Audio Doorphone Intercom System

Model: DP-LA01/DR-2GN

Includes:

  • 1x DP-LA01M Master Audio Doorphone Room Station
  • 1x DP-LA01S Slave Audio Doorphone Room Station
  • 1x DR-2GN Vandalproof Door bell station


Product Features:

Door phone DP-LA01
  • 2 wires with non-polarity
  • Talk with a visitor
  • Door lock release
  • Room to Room
Specifications
  • Power Source: AC 110V 50/60Hz
  • Electrical plug: US type A, 2 blade prongs
  • Wiring:  Call: 2 wires / Door Release: 2 wires , Master/Slave: 6 wires (1.6Ø Copper Wire)
  • Dimensions (mm): 107 (W) x 195 (H) x 39 (51)(D)
  • Mount type: Surface-mounted type
  • Distance: 100m (0.65Ø) 150m (0.8Ø)


Door Unit DR-2GN

Features
  • House call and talk
  • 2-wire entrance panel
Specifications
  • Power Source: from DP-LA01
  • Mount Type: Surface-mounted type
  • Wiring: 2 wires
  • Operation Temperature: -10ºC ~ +40ºC
  • Dimensions (mm):88 (W) x 120 (H) x 21 (D)

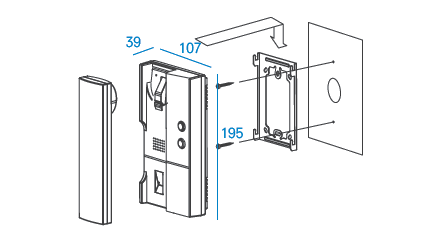

Installation:





Write a review

Note: HTML is not translated!
    Bad           Good

Commax DP-LA01/DR-2GN 1 Door-to-2 Room Audio Doorphone Intercom System

  • Brand: COMMAX
  • Product Code: DP-LA01/DR-2GN
  • Availability: In Stock

Tags: DP-LA01/DR-2GN
